Knee Brace With 15° Rom Adjustment
Description
KNEE BRACE WITH 15° ROM ADJUSTMENT
Product description

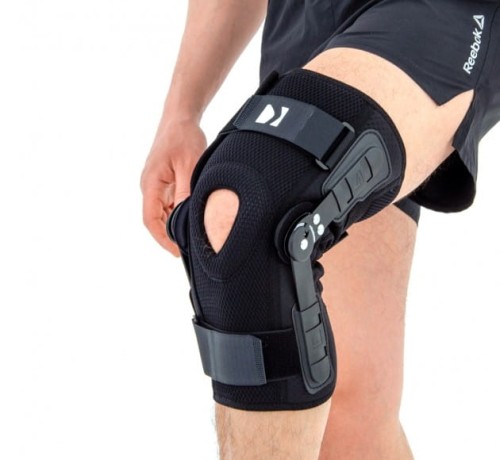

Knee brace is made of perforated foam, which is coated with lining fabric. It holds two independent supported sets of the Velcro tapes. The device is equipped with two sides splints, which are made of carbon fibres and consists of special drop lock allowing for ROM adjustment in every 15°. This precise adjustment facilities the rehabilitation process. The system of splints in open knee brace is arranged in a shape of X letter, which allows to adhere perfectly to the limb and also enables to stabilize the joint precisely. Internal perforation allows skin to breath and reduces overheating. Using of anatomic patella support made of foam with antimycotic properties provides maximum stabilization of the patellofemoral joint.

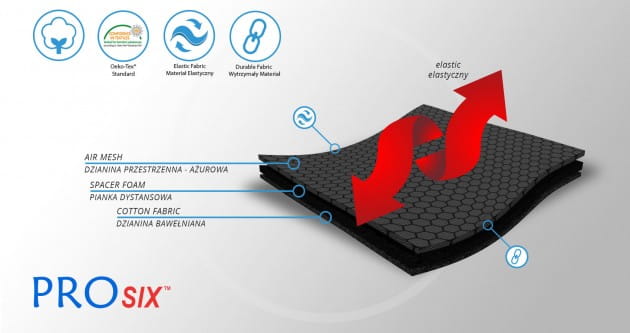

ProSix™ is an innovative fabric 3D, elastic in all directions and fitting to the limb precisely. External layer is 3D material providing excellent stabilization. There is duothermic spacer foam providing high air permeability and compression inside. The skin has contact with cotton that is breathable and soft. ProSix™ is friendly and neutral for the skin and has Oeko-Tex Standard 100 certificate.

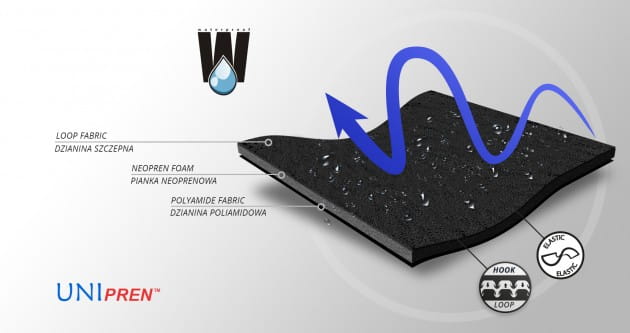

UniPren™ is universal 3-layered fabric made of external elastic polyamide self-gripping layer and internal perforated neoprene foam with elastic jersey. Foam’s perforation improves the air circulation and maintains great skin’s condition. Our fabric is soft and elastic and not knitted, what prevents skin against the skin abrasions in the compression zones. The braces made of UniPren provide the best stabilization in market. Self-gripping function of UniPren allows to fit the brace precisely. WATERPROOF MATERIAL.
Purpose of use
AM-OSK-Z/1R-01 brace should be applied in cases of:
- knee dislocation,
- knee twist and sprain,
- side instability of the knee joint,
- knee ligaments LCL, MCL and ACL injuries,
- knee ligaments reconstruction,
- other surgeries (orthopedic).
Available sizes
| Size | Knee circumference | How to measure |
| S | 30-34 cm (11,8″-13,4″) |
 |
| M | 34,5-38 cm (13,6″-15″) |
|
| L | 38,5-42 cm (15,2″-16,5″) |
|
| XL | 42,5-46 cm (16,7″-18,1″) |
|
| 2XL | 46,5-50 cm (18,3″-19,7″) |
|
| 3XL | 50,5-55 cm (19,9″-21,7″) |
|
| 4XL | 55,5-59 cm (21,9″-23,2″) |
Total length of the product: 36 cm (14,2″)
1R orthodesign splints
The orthopaedic splints 1R is the innovative solution with flexion and extension adjustment. The drop lock is very small (diameter: 30 mm) and provides 15o ROM adjustment. In addition, we apply the allen screws, which are mounted by steel pins and magnet. The most innovative is the blocking disk with the ratchet, which ensures required angle of ROM. In the short knee braces the splints 1R are universal, so they fit for both legs, but in the long knee braces the splints 1R have anatomic shape for right or left leg.
Oprional equipment
PCL KIT
