Opel Lower Limb Brace With Polycentric 20° Rom Drop Lock
Description
OPEN LOWER LIMB BRACE WITH POLYCENTRIC 20° ROM DROP LOCK
Product description

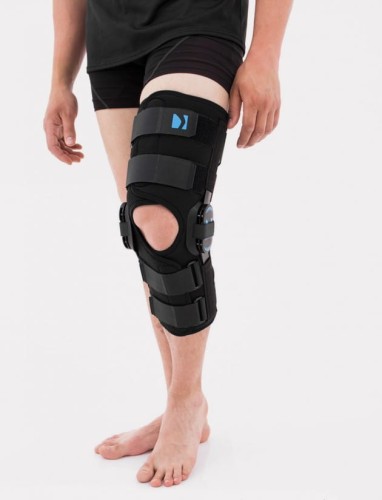

AM-OSK-OL/2R is the wrap around brace, made of innovative ActivPren™️.
ActivPren™ is an active 3-layered fabric made of elastic jersey layer and perforated neoprene foam. This lamination is very soft and high elastic. Foam’s perforation improves the air circulation and maintains great skin’s condition. The skin can breathe freely and its required temperature is maintained because of AirSupply System. This material is not knitte, what prevents skin against the skin abrasions in the compression zones. Our braces, made of ActivePren are the most durable and provide the best stabilization in the market. WATERPROOF MATERIAL.
It has four independent sets of Velcro straps. The device is provided with 2-axial sides splints with a rack mechanism and adjustment. The flexion and extension angle can be adjusted in every 20°. Splint are made of high quality alloy of aluminium coated with permanent powdery cover. Length of splints and their system which is arranged in a shape of X letter, it allows to adhere perfectly to the limb and also enable to stabilize the joint excellently. Such precise adjustment of the device facilitates the process of rehabilitation of injured knee joint.
To achieve good fitting and limb stabilization we have provided splint 2R. It allows to maintain the hinges in the axial knee joint. This kind of splints is universal so it is possible to use it for both legs. Furthermore, the length of the splints is bigger and special four sets of Velcro straps provide excellent frontal and sagittal stabilization. The brace is wrap around designed what is the great solution for seniors with limited mobility.
Purpose of use
AM-OSK-OL/2R brace should be applied in cases of:
- knee dislocation,
- knee twist and sprain,
- side instability of the knee joint,
- knee ligaments LCL, MCL and ACL injuries,
- knee ligaments reconstruction,
- other surgeries (orthopedic).
Available sizes
| Size | (A) Thigh circumference 15 cm above the center of the patella | (B) Calf circumference 15 cm below the center of the patella | How to measure |
| S | min 40 cm – max 44 cm (min 15,7″ – max 17,3″) |
min 30 cm – max 34 cm (min 11,8″ – max 13,4″) |
 |
| M | min 44 cm – max 48 cm (min 17,3″ – max 18,9″) |
min 34 cm – max 38 cm (min 13,4″ – max 15″) |
|
| L | min 48 cm – max 52 cm (min 18,9″ – max 20,5″) |
min 38 cm – max 42 cm (min 15″ – max 16,5″) |
|
| XL | min 52 cm – max 56 cm (min 20,5″ – max 22″) |
min 42 cm – max 46 cm (min 16,5″ – max 18,1″) |
|
| XXL | min 56 cm – max 60 cm (min 22″ – max 23,6″) |
min 46 cm – max 50 cm (min 18,1″ – max 19,7″) |
|
| XXXL | min 60 cm – max 64 cm (min 23,6″ – max 25,1″) |
min 50 cm – max 54 cm (min 19,7″ – max 21,3″) |
|
| XXXXL | min 64 cm – max 68 cm (min 25,1″ – max 26,8″) |
min 54 cm – max 58 cm (min 21,3″ – max 22,8″) |
Total length of product: 45 cm (17,7″)
Setting up
Splints 2R
Splints 2R – double axis polycentric splints, with rack gear which reflects the anatomic knee movement. Such splints are used in all knee joint braces where apart from angle adjustment lateral joint stabilization is also important. The splints are manufactured with high quality of aluminium alloy with sanded, durable cover which is neutral to the influence of sweat and salt. Required flexion and extension angle in every 20o is set by using the special pins. The splints are equipped with special oval covers to prevent the pins from falling out as well as from changing of the angle by unauthorized people. Standard length of the splints is 390 mm, but the braces with longer splints are additionally equipped with lateral stabilization of the knee joint. The splint and its design are patented in European Union by Reh4Mat Company.
