TLSO Back Support With The Height Adjustment

VOX

TLSO BACK SUPPORT WITH THE HEIGHT ADJUSTMENT

Product description

TLSO BACK SUPPORT VOX with back height regulation was developed according to anatomical shape and to provide high level stabilization and immobilization of Torso-Lumbo-Sacral area of spine.

An asymmetric closure allows the perfect fitting on the patient body. The panel of closure is made of velcro laminate with comfortable semi-rigid foam located inside, additionally provided with two elastic whalebones. The system GRIP & OPEN makes the orthosis easy to assemble and disassemble.

The lateral sides are made of strong perforated orthopaedic rubber AirRubber™ with unidirectional elasticity. The perforation of rubber makes the orthosis very breathable, improving comfort for end-users during the treatment.

AirRubber™ has unidirectional elasticity and it’s breathable. This lamination is perforated. Between the braids air flows freely and skin can breathe. In addition in high compression, these rubber braids provide a gentle massage for skin. Our orthopedic rubber is very friendly for skin.

The Back Metal Frame is totally removable and allows the regulation and control of the brace height.

The Back part of support is made of innovative material Active3D™.

Active3D™ is thermoformed fabric made of special foamed, cell-closed designed material. It reduces the pressure on the body or any abrasions made by orthopaedic stays and aluminum splints. It is fully waterproof fabric and does not absorb sweat. It’s easy to clean. Due to its features, the fabric is an excellent product for making medical orthopaedic braces and orthoses. ACTIVE 3D™ has various external self-gripping layers. Our material has special, thermoformed properties and may be shaped according to the functional goals of the final braces.

The lateral parts are made of AirRubber III™.

AirRubber III™ has unidirectional elasticity. It can be stretched, increasing the length, not width, what improves compression. Between the braids air flows freely and skin can breathe. In addition in high compression, these rubber braids provide a gentle massage for skin. Our orthopedic rubber is very friendly for skin.

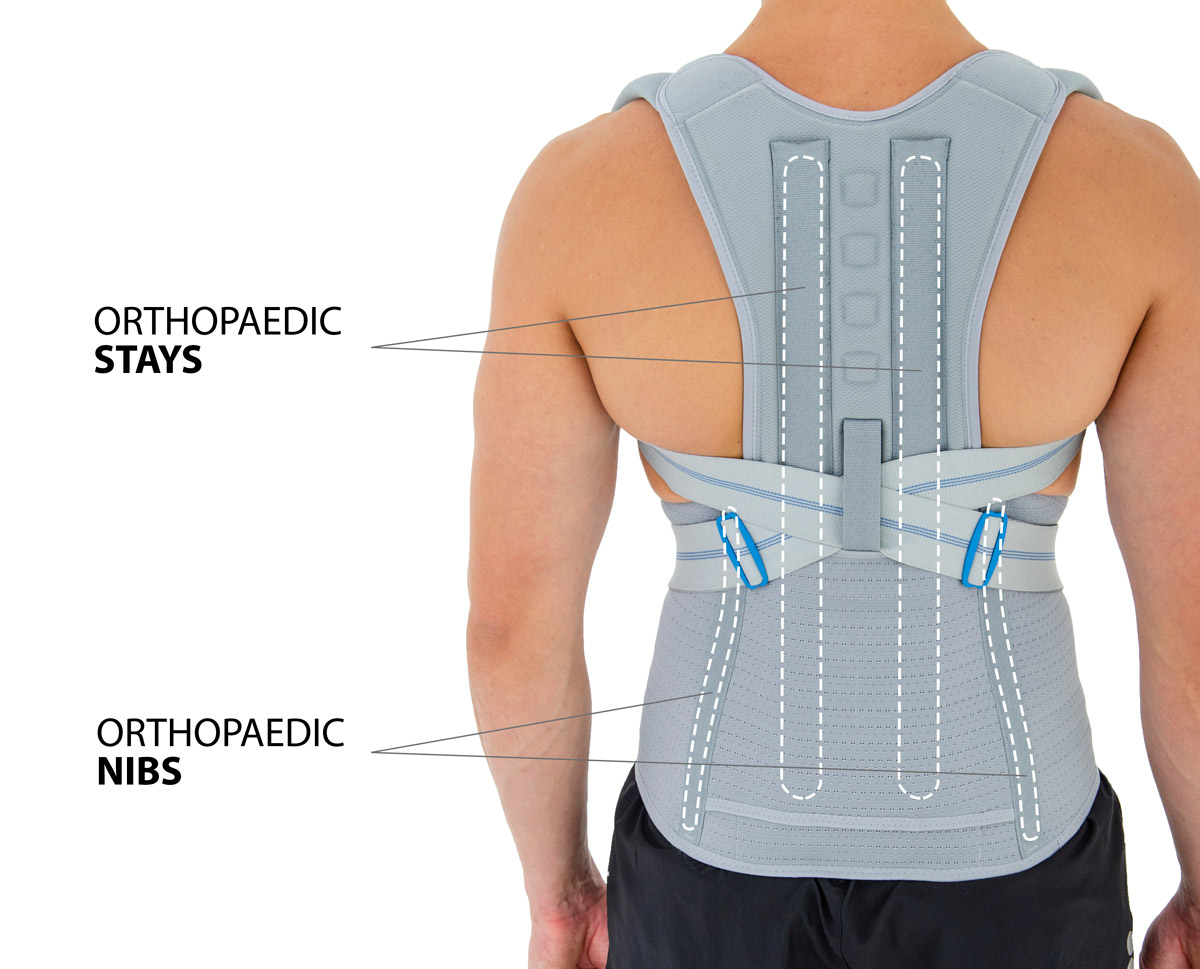

The Back Support is provided with anatomically shaped metal stays (sweat-resistant coating), which quantity depends on the size; 2 or 4 orhopaedic nibs and 2 metal stays for Spine.

The Back of the orthosis is equipped with wide belt of rubber designed for stabilization on lumbar area of spine.

Available sizes

TABLE 1

Size	Distance from T3 to the coccyx	How to measure
S	45-48 cm (17,7″-18,9″)
M	48,5-51 cm (18,9″-20,1″)
L	51,5-54 cm (20,1″-21,3″)
XL	54,5-57 cm (21,3″-22,4″)
XXL	57,5-60 cm and more (22,4″-23,6″ and more)
XXXL

TABLE 2

Size	Waist circumference	How to measure
S	65-75 cm (25,6″-29,5″)
M	75,5-85 cm (29,5″-33,5″)
L	85,5-97 cm (33,5″-38,2″)
XL	97,5-110 cm (38,2″-43,3″)
XXL	110,5-125 cm (43,3″-49,2″)
XXXL	125,5-145 cm (49,2″-57,1″)

ANY SIZE COMBINATIONS FROM TABLES 1 AND 2 ARE POSSIBLE

Total height of the lower part:
rear: 30 cm (11,8″)
front: 20 cm (7,9″)

Properties

- PATIENT-FRIENDLY PRODUCT – The lumber support is made of cotton orthopaedic rubber containing mainly cotton which is neutral to the skin.
- HIGH EFFECTIVENSS OF STABILIZATION – thanks to the anatomically shaped nibs it was possible to achieve very effective stabilization of the chest and also loin-back area.
- SAFETY – the front securing tapes increase the safety of usage of the product and eliminate the possibility of the uncontrolled opening of the device.
- COMFORT OF USAGE – the product is skin-color therefore comfortable to use and hardly noticeable on patient’s body. The stabilization of both: chest and loin-back area eliminates the necessity of usage of other less comfortable ortthopaedic devices.

Indications

- Pre- and Post-Surgical Stabilization
- Degenerative Spinal pathologies
- Osteoporosis
- Disc Hernia
- Spondylolithesis
- Spondylolysis
- Acute Back Pain
- Spine Instability
- Rehabilitation and Prevention
